12/24VDC - 25/12.5A Control Box - 2 Channel - Parallel Control - Wireless Remote

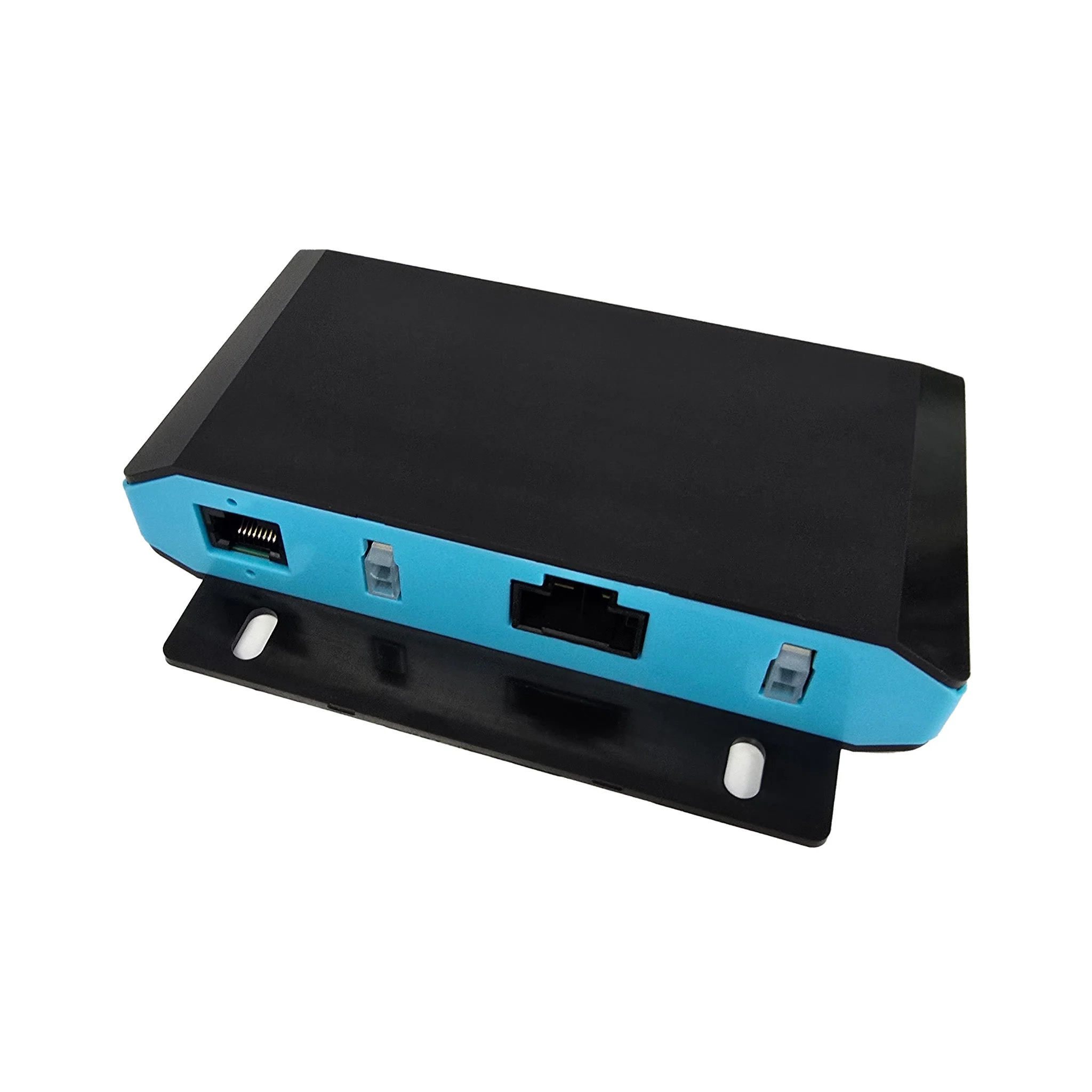

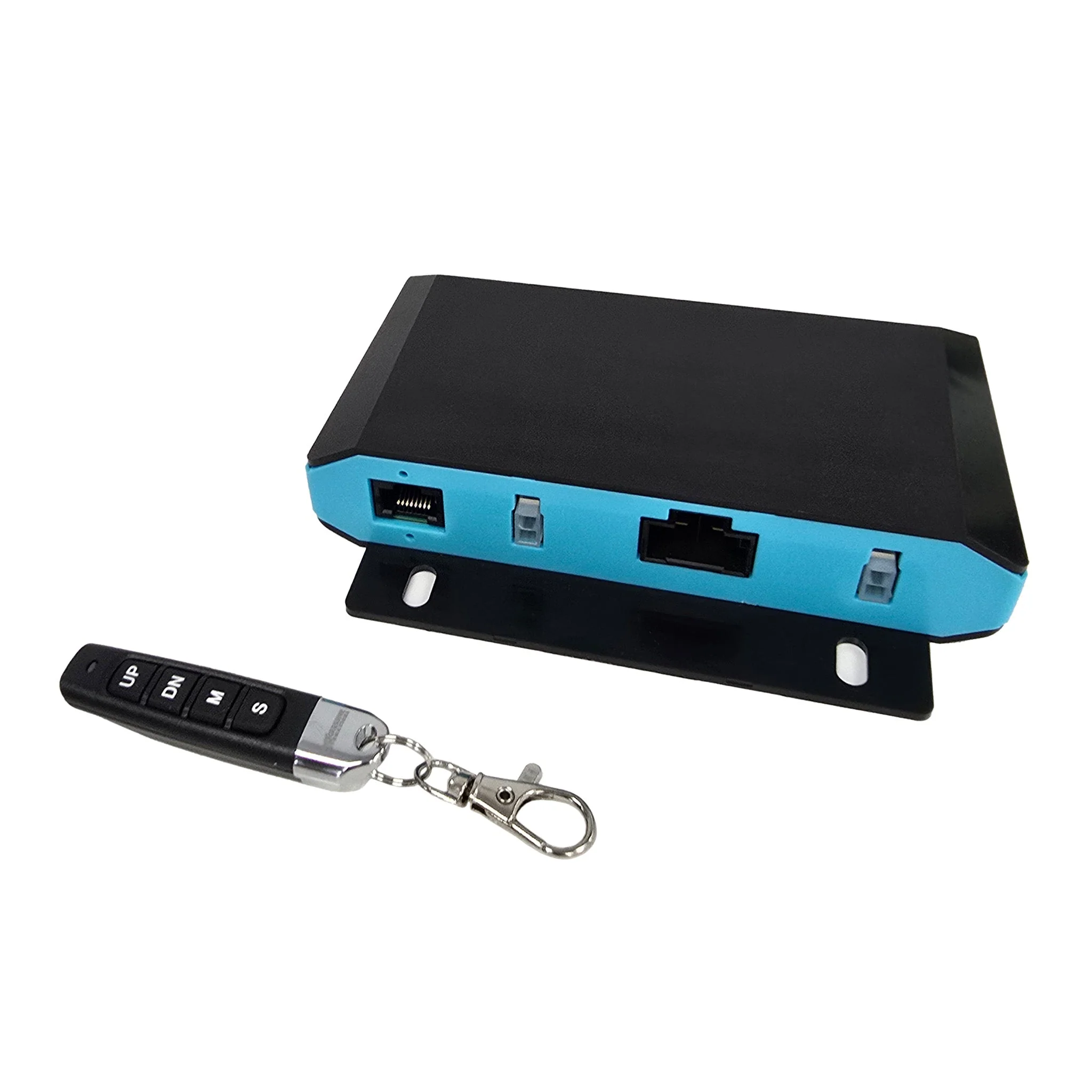

The PA-CB30 control box paired with the RT-40 linear actuator remote controller offers dual-channel outputs for parallel control of two actuators and the ability to pair up to 4 remotes. Using this included RF remote, users can access functions such as up, down, programming modes, and stop from a range of 100ft (30.48m) in the open air. The control box has an automatic power saving mode (4mA at 12VDC) with instant wake-up, wireless remote mode selection, smooth motion mode, momentary and non-momentary control, and LED indicator.

Safety features include out-of-range input voltage, overload, short circuit, and reverse input voltage protection. The suitable wire harness options with Molex connectors are sold separately and are used to connect your linear actuator to the PA-CB30 control box. This control box accepts an input of 10 to 26VDC across the power wires and is rated per channel to handle an output of 12.5A at 12VDC or 6.25A at 24VDC. Please see the PA-CB30 Data Sheet for information about controls, wiring, and troubleshooting.

Important: This control box does not come with a wiring harness. Be sure to check your setup requirements, as the harness may need to be purchased separately.
