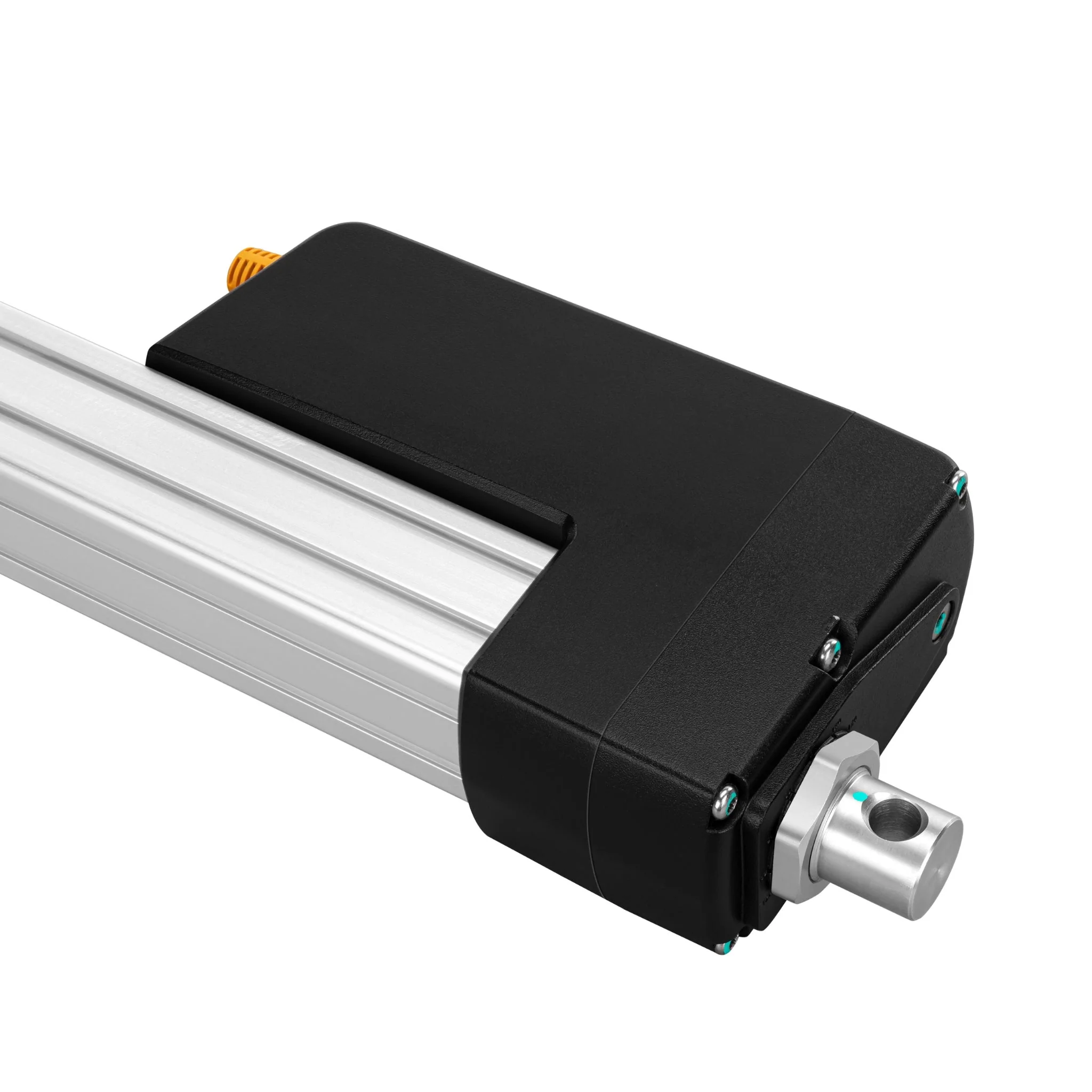

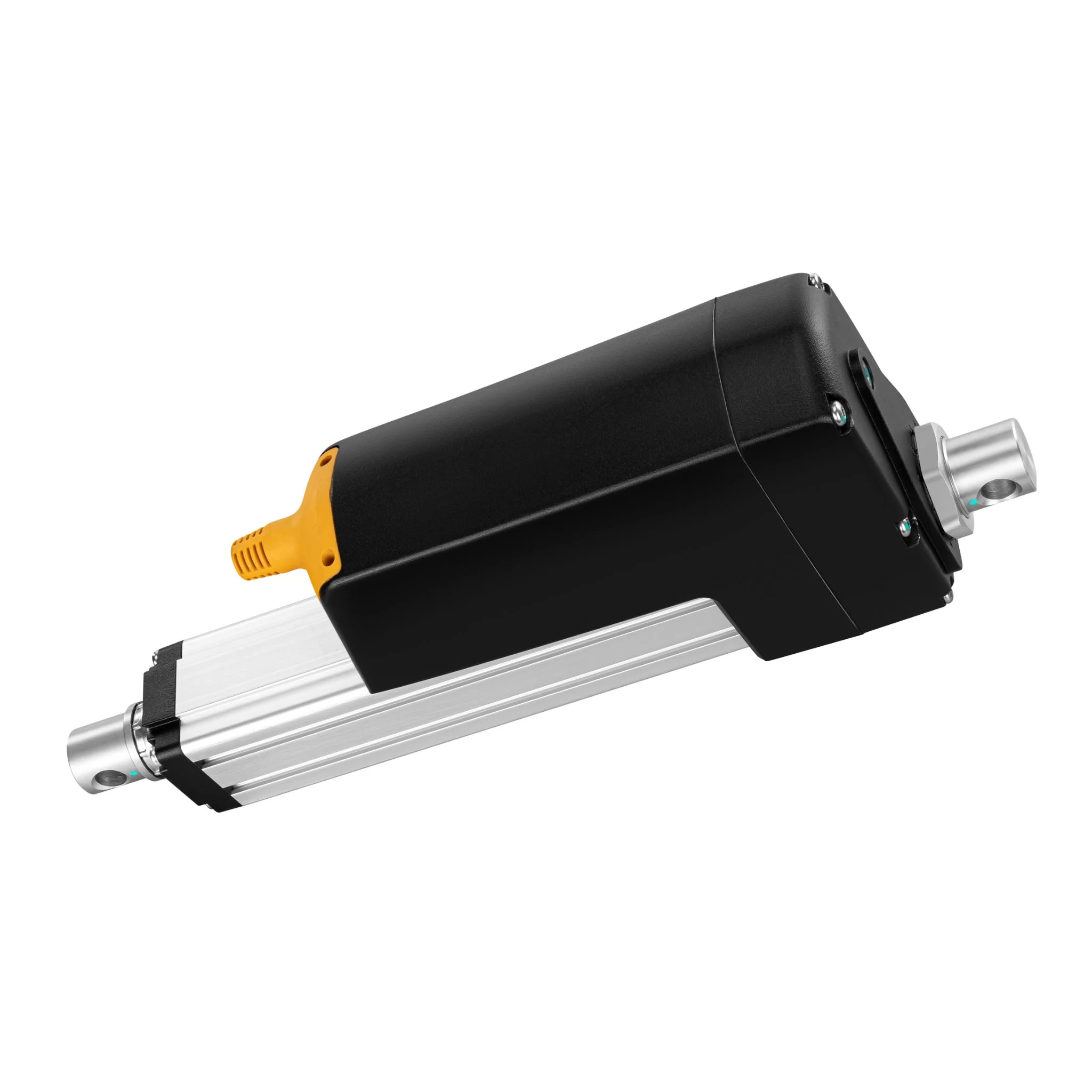

Heavy Duty Linear Actuator with Feedback

The PA-HD3 heavy-duty linear actuator with feedback provides the highest force ratings in our lineup of hall effect actuator models and static waterproof capabilities in an ACME screw design. The stainless steel shaft, accompanied by metal gears, allows it to push and pull up to 2698 lbs and hold up to 3372 lbs. The IP67 ingress protection rating provides a versatile unit that can withstand exposure to dust and submersion in water while static in harsh outdoor environments.

This high-force linear actuator with positional feedback utilizes Hall effect signals for higher precision in industries such as manufacturing, machinery, agriculture, and industrial automation. With manual override capabilities, users can still change stroke positions in the event of an electrical power outage. For a full list of specifications, customization options, and dimensional drawings, please see our PA-HD3 Data Sheet.

MOUNTING OPTIONS:

The BRK-17 bracket, designed for the heavy-duty linear actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.

CONTROL SYSTEMS:

The high-force linear actuator is compatible with the PA-CB41-2 when paired with the appropriate wiring harness and power supplies. With each controller and control box comes a wide range of control options useful for whatever project you have in mind. Take a look at our relays and control systems page for a full list of options.

*Please note that the PA-HD3 is not rated for shock or pulse loads.
